Skyworth Optical-Electronic Co., LTD.
|

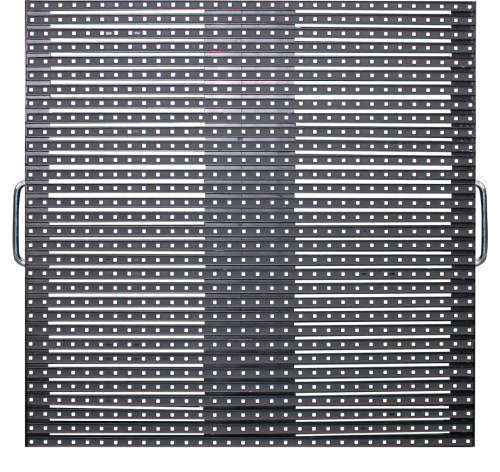

curtain LED Video screen
| Price: | 1.0 USD |
| Payment Terms: | T/T,WU |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Lightweight of 28kg per sq meter,60mm thickness;
High transparent leads to excellent heat dispatch, free of air conditioner
Pixel pitch: 16mm
Pixel configuration : SMD 3 in 1 (1R1G1B)
LED encapsulation : 5050
LED Tile Size: 512mm
Cabinet dimensions: 512*512mm
Physical resolution : 3906/m2
Cabinet resolution: 32*32
Cabinet weight: 7KG
Best viewing distance: 16~85m
Viewing angle: Hor.≥120° (optional), Vert.≥120°
Average Power consumption: <600W/m2
Max.power consumption: <1200W/m2
Control mode: Sychronism
Graphic card DVI card
LED Dirving mode: Static constant
Frame rate: ≥60Hz
Refresh rate: ≥1000Hz
Brightness: ≥6500cd/m2
Operating temperature: -30℃ -- +60℃
Ingress protection (front/rear): Front/Rear: IP65/IP54
Input voltage (AC): 110V±10% or 220V±10%
Brightness adjustment: 16 levels automatically and 100 level manually
Computer system WIN98\WINXP\WIN200,WIN7,etc
Signal input: RFS-Video\RGB\RGBHV\YUV\YC\COMPOSITION\HDSDI/SDI etc.(Optional)
Control system: PCTVcard (optional) +DVI graphic card +main control card+optical fiber transfer (optional)
MTBF: ≥6000 Hours
LED lifetime: 100000 Hours
Malfunction Dot Rate: < 0.0001
Software : LED studio
Pixel configuration : SMD 3 in 1 (1R1G1B)
LED encapsulation : 5050
LED Tile Size: 512mm
Cabinet dimensions: 512*512mm
Physical resolution : 3906/m2
Cabinet resolution: 32*32
Cabinet weight: 7KG
Best viewing distance: 16~85m
Viewing angle: Hor.≥120° (optional), Vert.≥120°
Average Power consumption: <600W/m2
Max.power consumption: <1200W/m2
Control mode: Sychronism
Graphic card DVI card
LED Dirving mode: Static constant
Frame rate: ≥60Hz
Refresh rate: ≥1000Hz
Brightness: ≥6500cd/m2
Operating temperature: -30℃ -- +60℃
Ingress protection (front/rear): Front/Rear: IP65/IP54
Input voltage (AC): 110V±10% or 220V±10%
Brightness adjustment: 16 levels automatically and 100 level manually
Computer system WIN98\WINXP\WIN200,WIN7,etc
Signal input: RFS-Video\RGB\RGBHV\YUV\YC\COMPOSITION\HDSDI/SDI etc.(Optional)
Control system: PCTVcard (optional) +DVI graphic card +main control card+optical fiber transfer (optional)
MTBF: ≥6000 Hours
LED lifetime: 100000 Hours
Malfunction Dot Rate: < 0.0001
Software : LED studio
