LED Video wall
Price: |
1.0 USD |
Payment Terms: |
T/T |
Place of Origin: |
Guangdong, China (Mainland) |
Product Detail
Model No.:
SW-PH12-OF
Production Capacity:
1000 square meters per mont...
Delivery Date:
28 days after down the paym...
Brand Name:
Skyworth
Means of Transport:
Ocean
Packing:
wooden box
Type:
Others

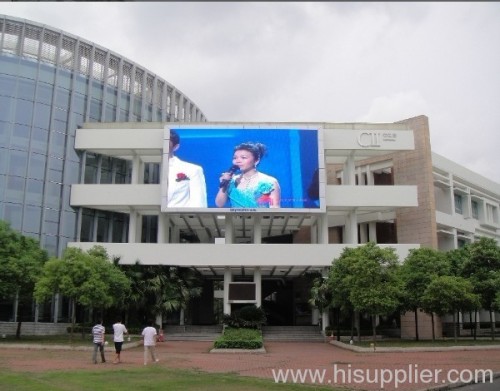

1. Outdoor use
2.High Quality Pictures
3.DIP346 (1R1G1B)
4.Wide Viewing Angle
5.High refresh rate
6.High grey level
7.Feasibility of
Pixel Pitch: 12mm
Pixel density: 6944 pixels/m2
Refresh rate: ≥300 HZ
Brightness: ≥6000cd/m2
Pixel composition: 1R1G1B
LED encapsulation:DIP346
Drive mode: 1/4 scan
Module size: 192*192mm
Cabinet size: 960*768mm
Weight: ≤65KG/m2
Viewing angle : Hor.≥110°Vert.≥50°
Gray grade: 14bits
White balance temp: 6500(adjustment)
Contrast ratio: 1000:1
Working voltage: DC5V
Power supply : AC100-240V 50HZ
Protection: Front:IP65,Rear:IP54
Interface mode: Aviation connector
Installation method: hoisting or fixed
Power consumption: 550W/m2(Avg),1100W/m2(Max)
Display interface: VGA, DVI, HDMI, 1000Mbps Ethernet port
Storage temp. & humidity: Temp.-30°C——+80°C;Humidity:10-99%
Working humidity Temp.-20°C——+60°C;Humidity 10-99%
Life span : 100,000 hours
Voltage withstand test: 3000V/Minute
ground resistance ≤0.1Ω
Earth leakage current: ≤3.5mA
Gap between modules: ≤1mm
EMI: meet EMC standard
Shockproof capability: meet GB6587.4-86 standard
